Desludging & Decanter

WORK SCOPE : DESLUDGING & DECANTER – 3 PHASE SEPERATION

Objective

Cleanliness of systems is paramount prior to production and certification of cleanliness is essential during the commissioning phase or shutdown of any project. System such as storage & floating tanks, waste water, oil recovery pits & remote impounding basin always required similar sludge desludging & separation system where else the men entry is limited due to LEL, VOC & H2S hazardous gases.

GENERAL PROCEDURE FOR PIT/TANK DESLUDGING

FST MOU with EIS INDUSTRIAL SERVICES SDN BHD to provide wide range of industrial cleaning system which not only limited to tanks pits, pounds & reservoirs. The mechanism suitable for various dimensions, configurations, and viscosity of oil & sludge types. We also provide relevant mechanical equipment such as computerized decanter separation system, baffle combi units 20T 4units & screw pumps 15m³/hr, lobe pumps 163m³hr & power pack 240bar/2000Rpm to determine the completion of desludging process.

Verification of cleanliness to standards – Dry clean surface.

Online Desludging established specifically for application pit.
Four major activities as listed below explained in detail for better perspective on overall processes involved during project work execution.

DESLUDGING WORKS- Works involved in process of extracting the require sludge/sediment from PIT/TANKS by means transferring the sludge with utilization of several equipment (ie. Hydraulic lube pump, submersible pump, screw pump etc.)

SLUDGE TREATMENT- Works involved in process of introducing modern polymer into the extracted sludge for conditioning/ thickening sludge prior dewatering

DEWATERING- Process of separating water from conditioned sludge. In this case by using MORZ Z5-E 15-2-m³/hr bowl speed as mechanism for the separation of water.

DRUMMING/PACKAGING- Process of dried sludge packed in accordance to client requirement for disposal.

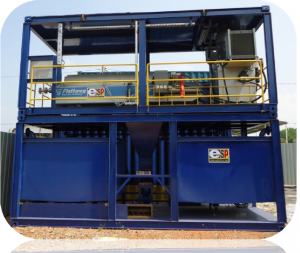

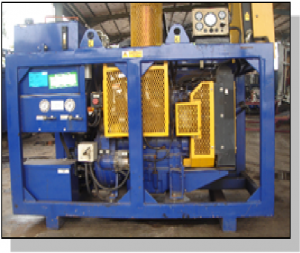

MORZ Z5-E – desludging unit	Hydraulic power pack
Max Bow Speed: 3500 Rpm   Rated Capacity: 70 M3/Hr	Port 1 = 118.9 l/min @ 0 bar & 1500 rpm
Bow diameter: 530 mm   Sludge Capacity: 15-20 M3/Hr	Port 2 = 69.0 l/min @ 0 bar & 1500 rpm
